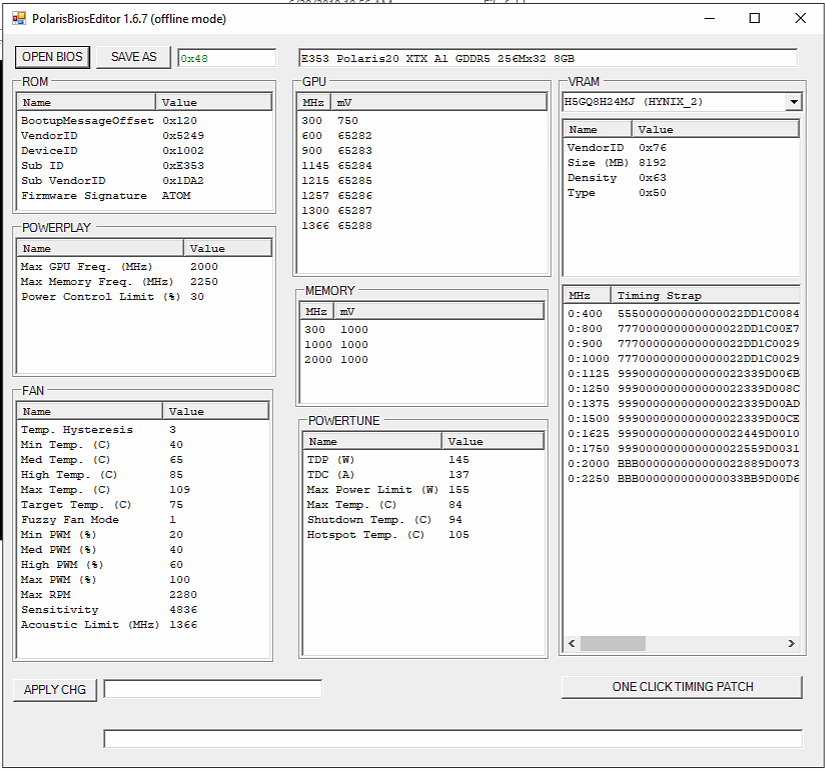

Polaris Bios Editor: Instruction manual. Unpack, run the program. Click on Open Bios. Open the BIOS that you saved (for example, using ATIFlash ) After you open the firmware, click One click timing patch (in right corner). All timings were automatically edited from. Now press Save as. You can change the voltage in the gpu. Red BIOS Editor (RBE) 1.0.1 Fixed VRAM issue 1.0.2 Fixed unicode problems 1.0.3 Timings were not completely saved (VRAM issue) 1.0.4 Fixed issue with BIOS files 512 KB 1.0.5 DRAM Timing Editor 1.0.6 Polaris Support 1.0.7 Minor Bugfixes: Navi Curve Helper. This program allows you to calculate the offset curve parameters to set the. How to modify your Polaris GPU. We take no responsibility! Proceed on your own risk! Use Polaris Bios Editor 1.7.5! Open up the bios file, and click 'One Click Timing Patch': Then click Yes/OK a few times: When it asks if you want to Pro Version answer no: Save the bios, and you are done! This video will show you how to modify the timing on your AMD bios with one click bios, AMD bios mod. This is the software that I currently use for AMD graph. Polaris BIOS editor 1.7.5 one-click timing patch not working. I am using an AMD Raedon RX 570 4gb and am trying to mod the bios for greater performance, however, the one click timing patch doesn't seem to work. The first time I tried it, running NiceHash caused the screen to go black. I thought it was just user error, so after restoring the.

Buy mining bios with performance timings! https://mining-bios.eu/

Polaris Bios Editor 3 PRO https://mining-bios.eu/product/polaris-bios-editor-3-pro-pbe-3-pro-performance-timings/

Bios mod guide: https://bitcointalk.org/index.php?topic=1954245.0

If you don't trust the EXE just build on Linux with sh build.sh. Quick and easy.

Important: You need to disable SecureBoot / Activate CSM in your

Motherboard UEFI because the modification will make

the cryptographic signature invalid.

VirusTotal Report: https://www.virustotal.com/gui/file/baeba7089443f2341b83fe00302bfd6dcdf3a83b452fa3f085bc76c84162fea1/detection

0/58. If your AV warns you about a virus/trojan, consider it as false positive.

Fork from lojkinKot

works on linux with mono, executable is build against .net 3.5

one click timing feature should be used with care, it maybe not stable for you

please build the executable yourself or decompile the existing one if you don't trust

v1.7.5

  • Added UberMix 3.3
  • Few small changes in code

v1.7.4

  • Fixed bug no supported memory found (K4G80325FC)
  • Old version bump in properties

v1.7.3

  • Added support for memory Samsung K4G80325FC
  • Added new device AMD Radeon RX 580 2048SP - 6FDF

v1.7.2

  • Fixed apply timings for Hynix memory
  • Added support for RX590
  • Added support for New Hynix memory H5GC8H24AJ
  • Added timing for New Hynix H5GC8H24AJ

v1.7.1

  • Updated Elpida Timing
Polaris Bios Editor One Click Timing Patch

v1.7.0

  • Added New timing for Hynix.
  • Added Clock Stretch Amount.
  • Added option for choosing timings on hynix Between Universal Hynix timing and Good hynix timing.
  • Universal Hynix timing work on: H5GC8H24MJ, H5GQ8H24MJ, H5GQ4H24AJ.

v1.6.9

  • Fixed UI (updated design)
  • Fixed and Updated all Timing's
  • Added New strap for Micron and Hynix
  • Added option for choosing timings on samsung between uber-mix 3.1 and 3.2, and on Micron between Good Micron timing and S Micron timing.
  • Added Icon
  • Added option for max. Mem. freq. (after one click timing patch button click automatically change max. mem. to 2300 MHz)
Bios

v1.6.8

  • Fixed Samsung Uber-Mix strap
  • Added support for Hynix H5GQ4H24AJ
  • Fixed fan mod option

v1.6.7

  • created solution and project files for ide
  • support for device id 0x67ef
  • better timings for micron memory
  • firmware signature test / firmware signature in ascii
  • editing of bios message (experimental)
  • online check for new versions
  • online display of developer notice
Polaris bios editor one click timing patch instructions

v1.6.6

  • support for rx550 device id 0x699F

v1.6.5

  • support up to 48 entrys in the timings table (more than 2 memory vendors)

v1.6.4

  • elpida timings fixed
  • K4G41325FS memory support

v1.6.3

  • timing modification starts now at 1500 instead of 1750
  • device id 67FF now also supported

v1.6.2

  • experimental: ubermix timings are now also applied to 4g SAMSUNG vram (K4G41325FC, K4G41325FE)
  • timing modification starts now at 1750 instead of 2000

v1.6.1

  • hynix memory H5GC8H24MJ now recognized (same timings as H5GQ8H24MJ)

v1.6

  • window resizes properly now
  • memory vendor detection
  • one click timing patch (samsung, hynix, elpida, micron)

v1.5

  • added FanControlMode setting
  • implemented some timing editor related code (not usable yet)

v1.4.1

  • replaced WPF components with Windows Forms to archive mono compatibility

Contribution from Sebohe:

Build Dependencies

Ubuntu 16.04.2:

Arch Linux:

Building

Executing

Polaris Bios Editor One Click Timing Patches

Just change your working directory to the PolarisBiosEditor and execute:

This a basic guide on how to flash your GPU with a BIOS created in PolarisBiosEditor. Please make sure you understand all the risks that comes with playing with the BIOS before you try this. I dont take any responsibility of damages.

Click

Polaris Bios Editor One Click Timing Patch Download

(I dont claim my way is the only way nor the best way, but this is how I do it and it might be useful to someone)

Polaris

You will need a computer with Windows.

Polaris Bios Editor One Click Timing Patch Free

Download this two programs and install them:

PolarisBiosEditor:
https://github.com/jaschaknack/PolarisBiosEditor

ATIWinFlash:
https://www.techpowerup.com/download/ati-winflash/

Polaris Bios Editor One Click Timing Patch

  1. Turn off PC and insert the GPU you want to flash into a free 16x PCI slot.

  2. Turn on PC. When in Windows start ATIWinFlash as admin (right click-run as admin).

  3. Make sure you have selected correct card in the top corner where it says 'System Video Device'. (Pls note that only AMD cards will be shown here and if there is no AMD card connected ATIWinFlash will not start)

  4. Click on 'Save' and save the bios on your computer. Make sure you save it somewhere safe, in case you might need it in the future. Since this is the original BIOS. You can then close ATIWinFlash.

  5. Now open PolarisBiosEditor. And click 'OPEN BIOS' and find the BIOS you created earlier. (Make sure you are showing all files . if you cant find it)

  6. After you have opened your BIOS click on 'ONE CLICK TIMING PATCH'. You should then get a windows that confirms that it have applied new straps.

  7. Save this new modded BIOS. Make sure you dont overwrite the original BIOS. Then you can close PolarisBiosEditor.

  8. Now open ATIWinFlash as admin again. Once again make sure you have selected the right GPU under 'System Video Devices' Click on 'Load Image' and load the modded BIOS.

  9. Click on 'Program' and that should flash your modded BIOS onto your GPU.

  10. Turn off computer, take out GPU put it into minning rig.

  11. Profit.
